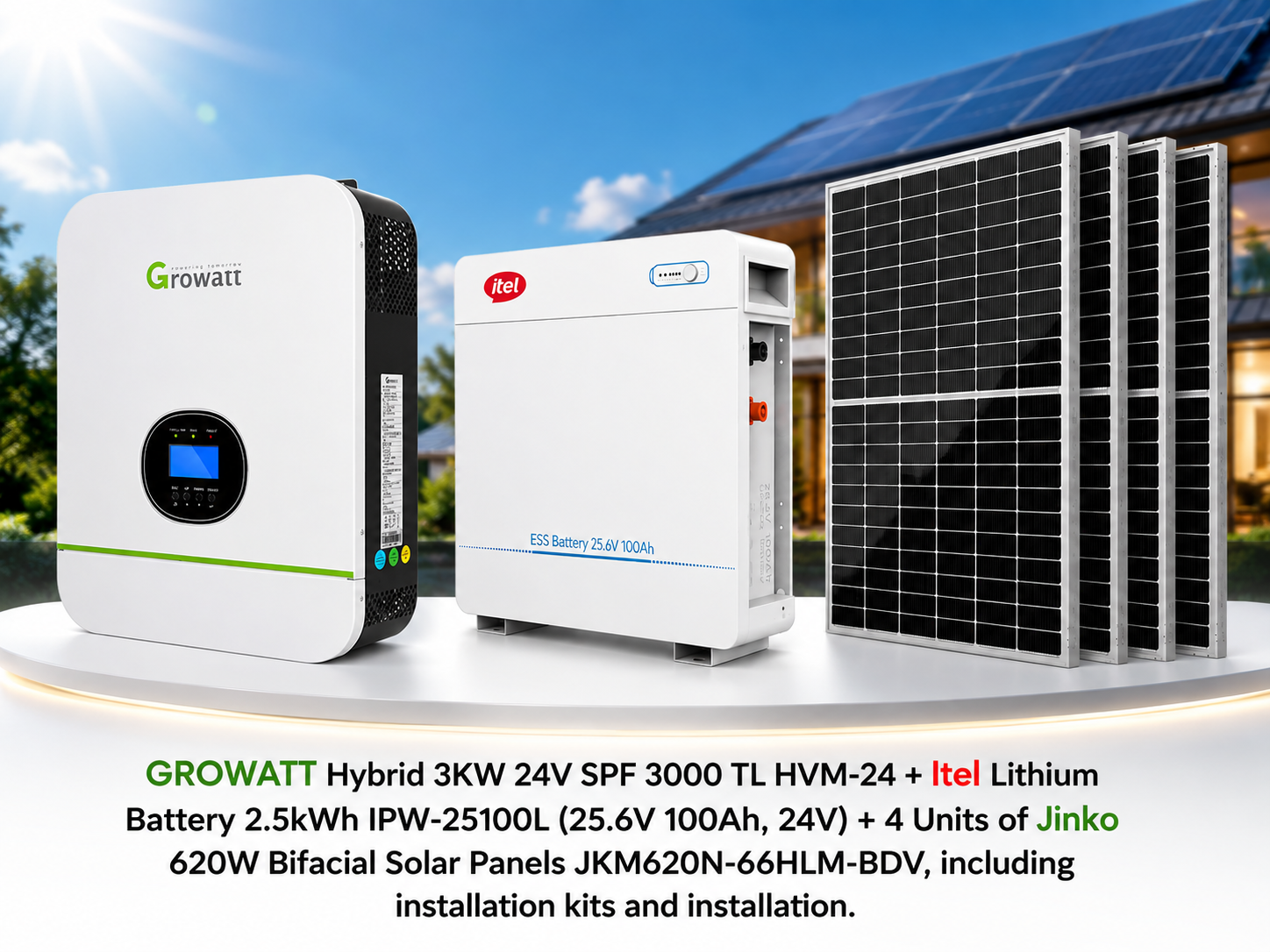

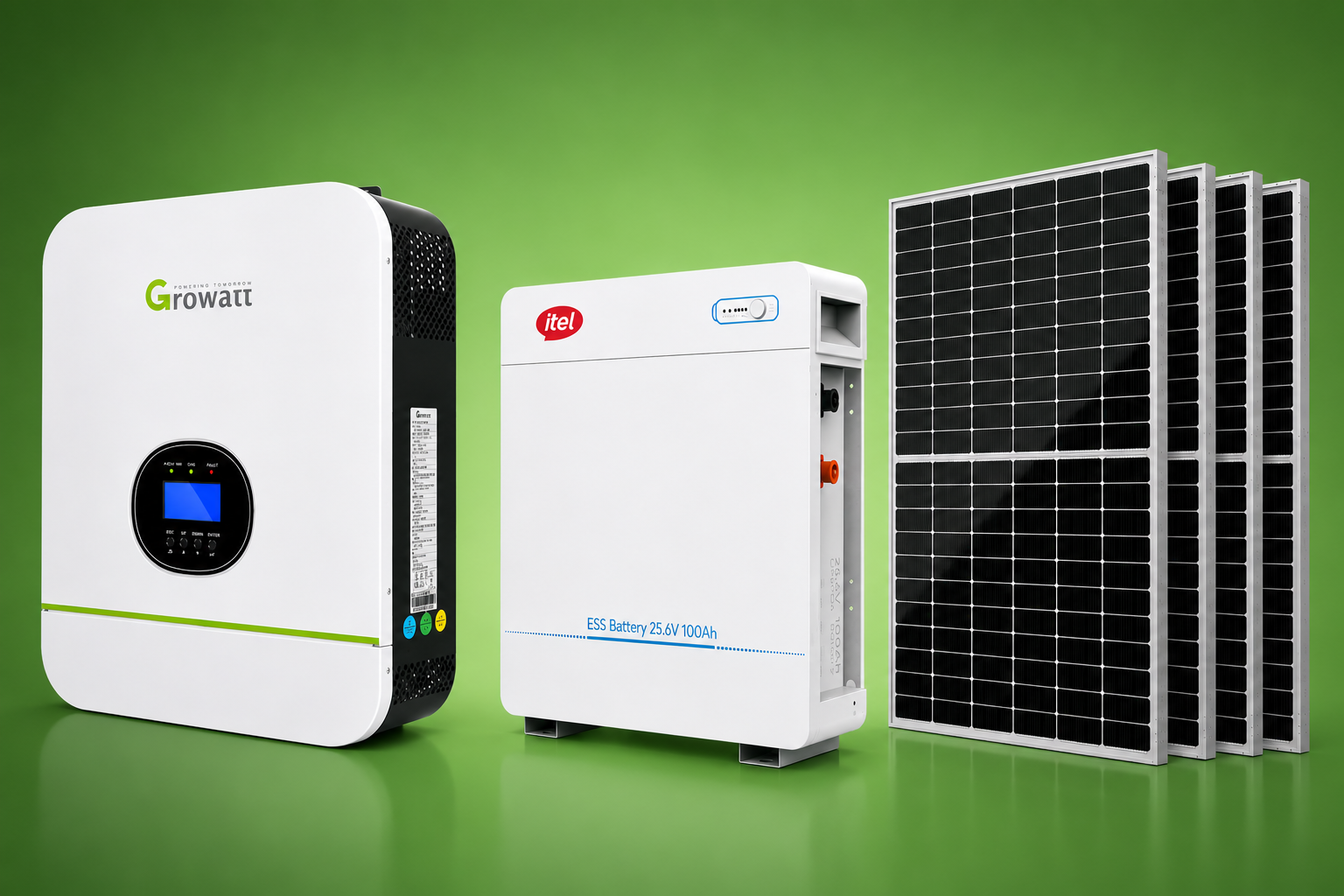

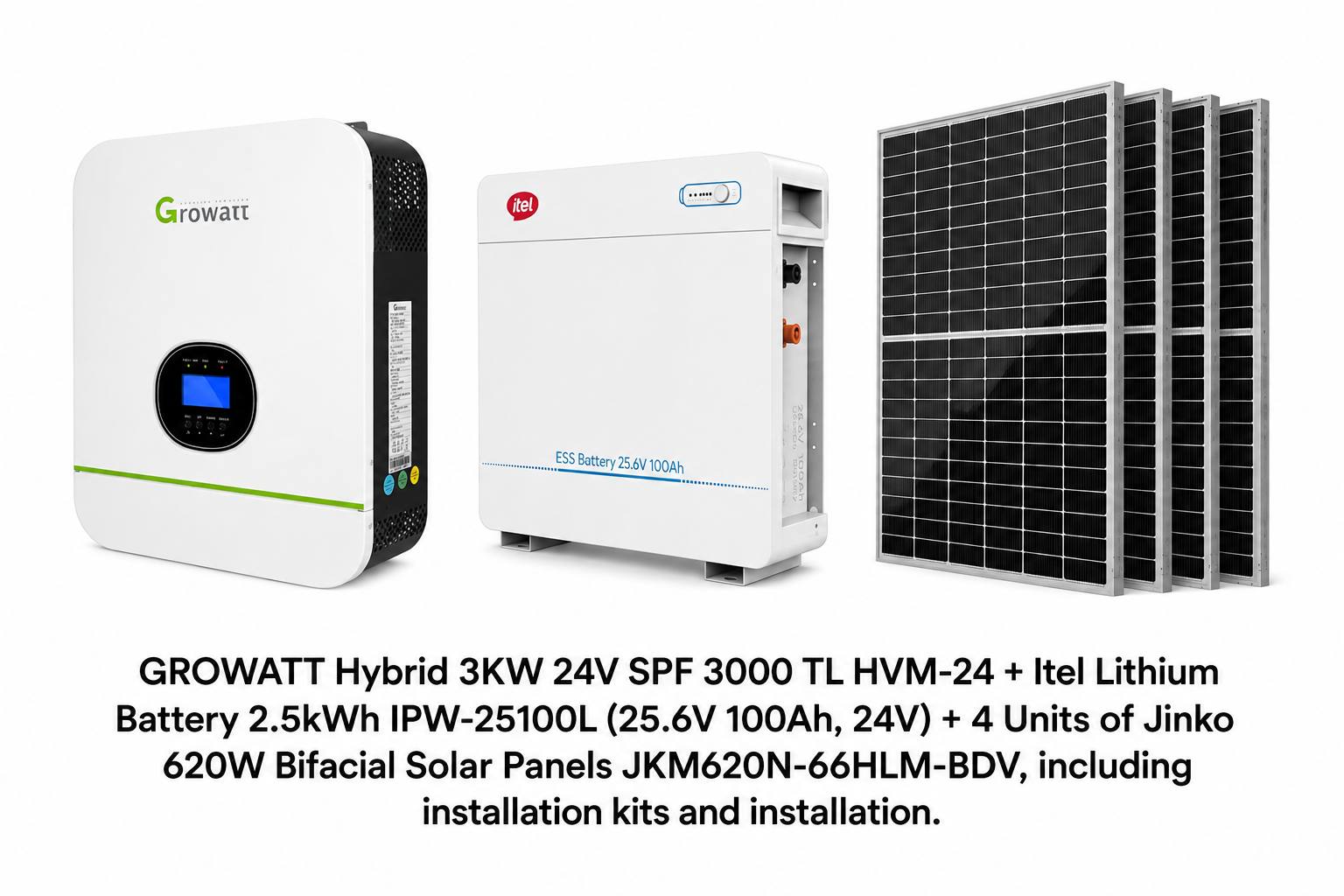

GROWATT Hybrid 3KW 24V SPF 3000 TL HVM-24

Why this product

Built for the progress you want.

GROWATT SPF 3000 TL HVM-24 - Hybrid 3KW 24V High Frequency Integrated MPPT charge controllerConfigurable grid or solar input priority WIFI Dongle Included for Monitoring Maximum PV Array Power 1500W" SPF 3000TL-HVM-24 Integrated MPPT Charge Controller Configurable Grid Or Solar Input Priority Optional WIFI/ GPRS Remote Monitoring Parallel For Scalability Battery Voltage 24VDC Battery Type Lithium/Lead-acid Rated Power 3000VA/3000W Parallel Capability No AC Voltage Regulation (Battery Mode) 230VAC ± 5% @ 50/60Hz Surge Power 6000VA Efficiency 93% Waveform Pure sine wave Maximum PV Array Power 1500W MPPT Range @ Operating Voltage 30VDC ~ 80VDC Number of Independent MPP Trackers/Strings Per MPP Tracker 1/1 Maximum PV Array Open Circuit Voltage 102VDC Maximum Solar Charge Current 50A AC Charge Current 15A AC Input Voltage 230 VAC Operating Temperature 0°C – 55°C Storage Temperature -15°C – 60°C Itel Lithium Battery 2.5kWH - IPW-25100L 25.6V 100Ah 24V LiFePO4 Battery Type: Stable and long-lasting lithium iron phosphate technology for enhanced safety and lifespan. 100Ah Rated Capacity at 25.6V Nominal Voltage: Delivers consistent and dependable energy output. Wide Operating Voltage Range (20–29.2V): Ensures efficient performance in varying conditions. 100A Max Charge & Discharge Current: Supports high-demand power systems without compromise. Compact and Lightweight (27.88kg): Easy to install and integrate into home or business setups. Voltage: 24V Jinko 620W Bifacial Solar Panel - JKM620N-66HLM-BDV N-type Technology: lower LID/LeTID degradation and low light performance. HOT 3.0 Technology: better reliability and efficiency Dual-Sided Power Generation:Dual-sided power generation gain increases with backside exposure to light Mechanical Load Enhanced SMBB Technology: light trapping and current collection Anti-PID guarantee: Minimizes the chance of degradation Specifications: Cell Type: N -type Mono-crystalline Dimensions: 2382×1134×30 mm Maximum Power ‒ Pmax [Wp]: 620W Module Efficiency: 22-23 % NB: A. PV cables lengths are estimated for a single floor connection(I.e a bungalow), where extra floors exist, there would be an estimated 5meters addition in the length of PV Cables per string. B. AC Cable length are given based on close estimation where it is in deficit, customer would pay for the extra. C. Roof top installation has been assumed, any other location might require extra fabrication expense by the customer. D. Panel installation cost increases for each additional floor level. This is an inverter set and is not available for pickup. It will be delivered and installed
