TAICO

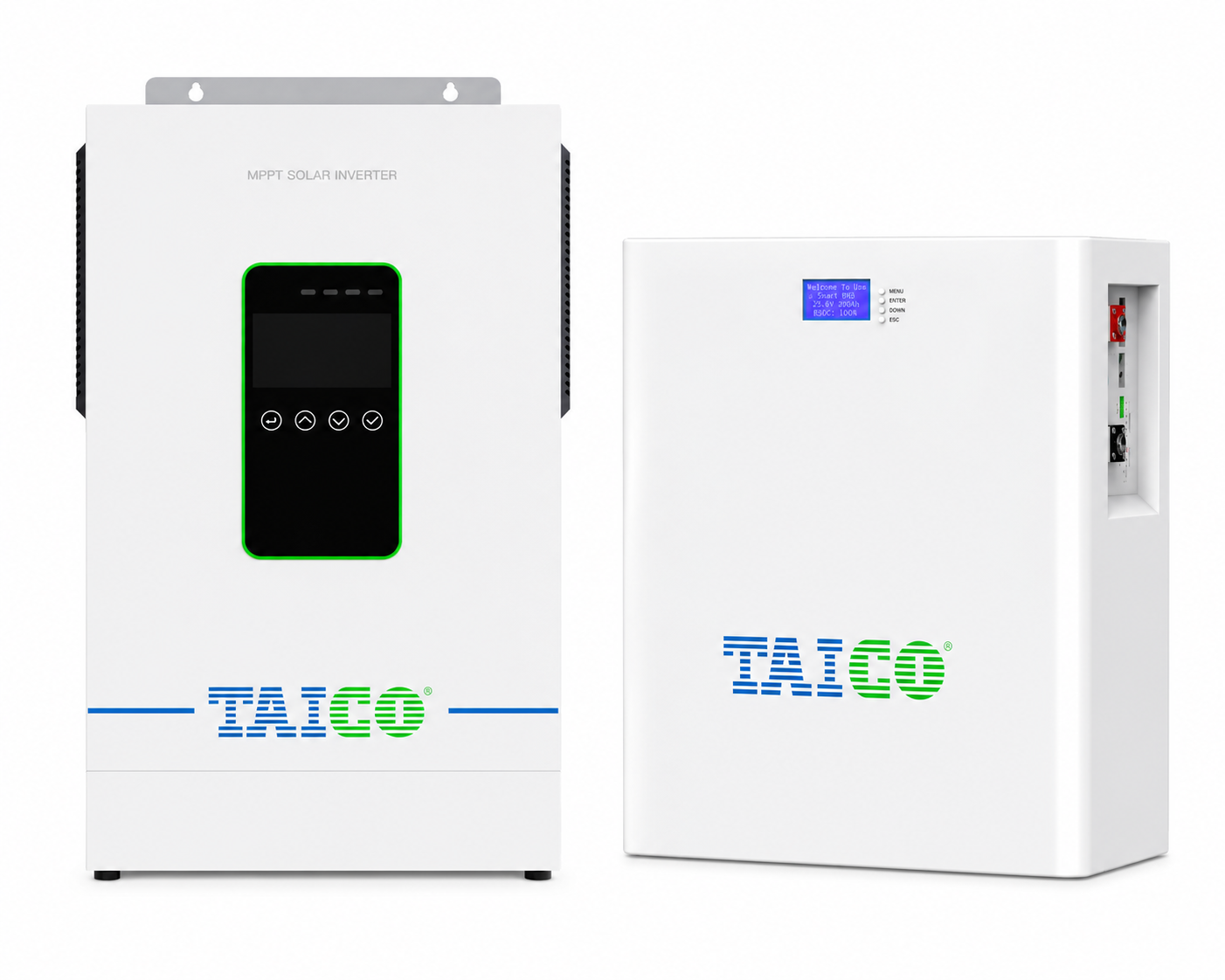

TAICO 3.6kW 24V Off-Grid Solar Inverter Kit
TKF-3.6K24- EU + TKPW-M5500
with 5.12kWh LiFePO₄ Battery (25.6V 200Ah) – Wall Mounted TKF-3.6K24- EU + TKPW-M5500 (Without Installation)
₦1,275,862Pay once- Brand
- TAICO
- Model
- TKF-3.6K24- EU + TKPW-M5500
- Category
- Inverters & Batteries
- Availability
- In stock
- Condition
- New
Product selection, installment setup and payment continue securely in CDcare. On desktop the app opens beside this page; on mobile it opens the installed Android or iOS app when available, with a secure web fallback.
Why this product
Built for the progress you want.
Power your home or business with the TAICO 3.6kW 24V Off-Grid Solar Inverter Kit, designed to provide reliable and efficient solar energy for everyday use. This complete system combines a 3.6kW pure sine wave inverter with a 5.12kWh wall-mounted LiFePO₄ lithium battery, delivering dependable backup power and long-lasting energy storage. TAICO 3.6KW 24V Single Phase off-grid Inverter - Built-in 100A Solar Charge Wide PV Input Voltage Range 40-500V TKF-3.6K24- EU x 1 Support Solar panel, Nepa, Generator to charge Need to connect with battery then can work Built-in 100A Solar Charge Support Lithium/Lead-acid Battery Lithium Battery Activation Detachable Dust Cover Wide PV Input Voltage Range 40-500V Feed-in to Grid Dual AC Output AC Input Parameter Specification Rated Input Voltage (VAC) 208 / 220 / 230 / 240; L + N + PE Voltage Range (VAC) 90~280±3 (Normal Mode); 170~280±3 (UPS Mode) Frequency (Hz) 50 / 60 (Auto Adaptive) AC Output Parameter Specification Rated Capacity (kW) 3.6 Surge Power (kVA) 7.2 Voltage (VAC) 208 / 220 / 230 / 240 Power Factor (PF) 1 Frequency 50/60Hz ±0.1% Switch Time (ms) 10 (APP/UPS Mode) / 20 (GEN Mode) Wave Form Pure Sine Wave Overload Capacity (Battery Mode) 60s@102%-110% load; 10s@110%-130% load; 3s@130%-150% load; 0.2s@≥150% load Max. Efficiency (Battery Mode) 92.7% @24VDC Parallel Quantity NA Charger (PV / AC) Parameter Specification Solar Charger Type MPPT Max PV Input Current / Power 18A / 5000W MPPT Range @ Operating Voltage (VDC) 40 - 450 Max PV Open Circuit Voltage (VDC) 500 Max PV Charge Current (A) 100 Max AC Charge Current (A) 100 Max Charge Current (PV + AC) (A) 100 Battery Mode Parameter Specification Normal Voltage (VDC) 24 Floating Charge Voltage (VDC) 27 Overcharge Protection (VDC) 30.5 Battery Type Lithium and Lead-acid Interface Parameter Specification HMI LCD Interface RS485 / CAN / RS232 Monitoring WiFi (Built-in) General Data Parameter Specification Ingress Protection IP21 Operating Temperature -10°C ~ 60°C Relative Humidity 5% ~ 95% (Non-condensing) Storage Temperature -15°C ~ 60°C Max. Operating Altitude 4000m (Derating above 1000m) TAICO 25.6V 200Ah 5.12KWh - Wall Mounted LiFePO4 Battery TKPW-M5500 x 1 25.6V 200Ah 5.12KWh Wall Mounted LiFePO4 Battery • Battery Energy: 5.12KWh • Continuous Discharge Current: 100A • Case: White Case wall mounted • Communication: RS485/CAN/RS232
✓Power your home or business with the TAICO 3.6kW 24V Off-Grid Solar Inverter Kit, designed to provide reliable and efficient solar energy for everyday use. This complete system combines a 3.6kW pure sine wave inverter with a 5.12kWh wall-mounted LiFePO₄ lithium battery, delivering dependable backup power and long-lasting energy storage.
✓TAICO 3.6KW 24V Single Phase off-grid Inverter - Built-in 100A Solar Charge Wide PV Input Voltage Range 40-500V TKF-3.6K24- EU x 1
✓Support Solar panel, Nepa, Generator to charge Need to connect with battery then can work
✓Built-in 100A Solar Charge
✓Support Lithium/Lead-acid Battery
✓Lithium Battery Activation
✓Detachable Dust Cover
✓Wide PV Input Voltage Range 40-500V
