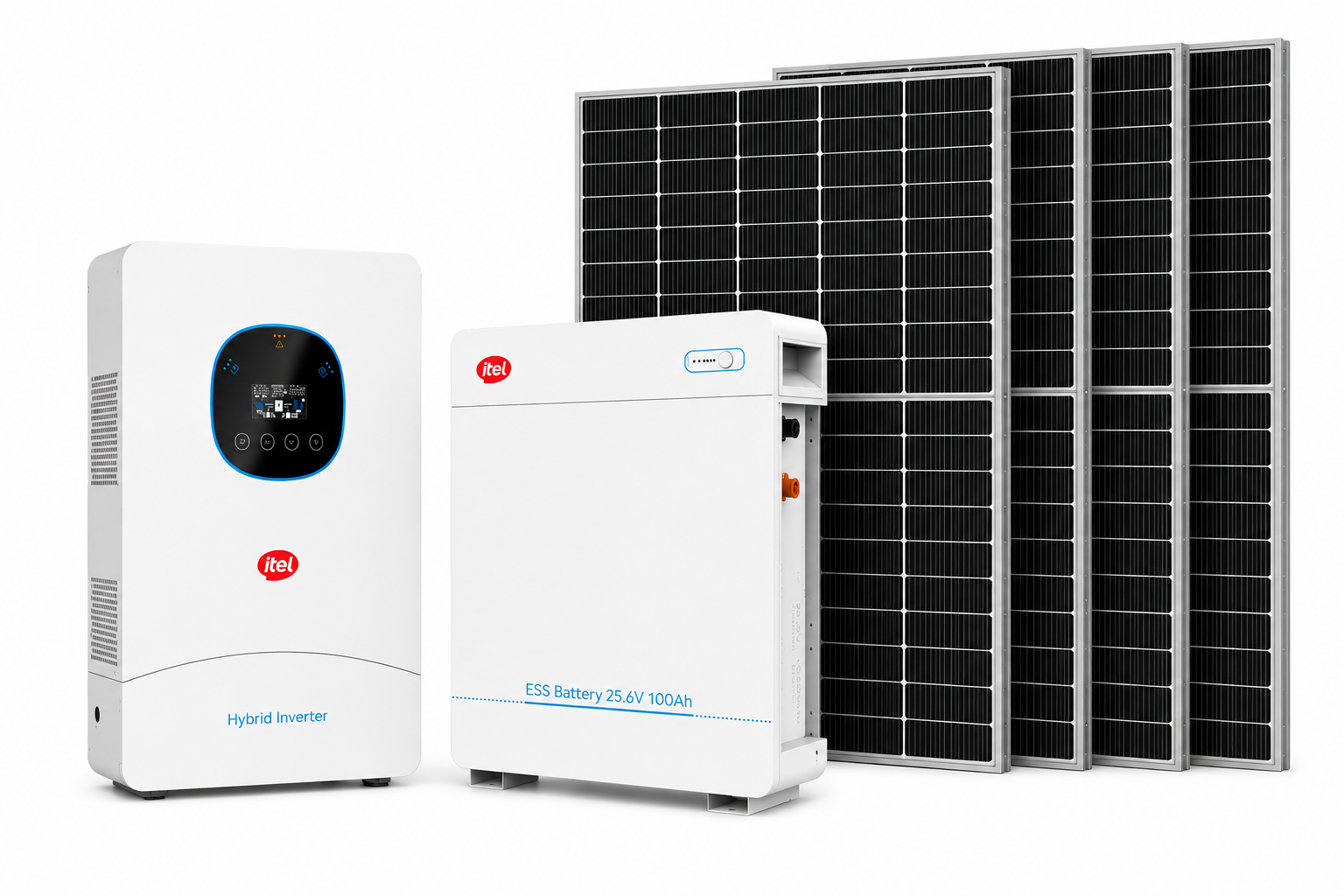

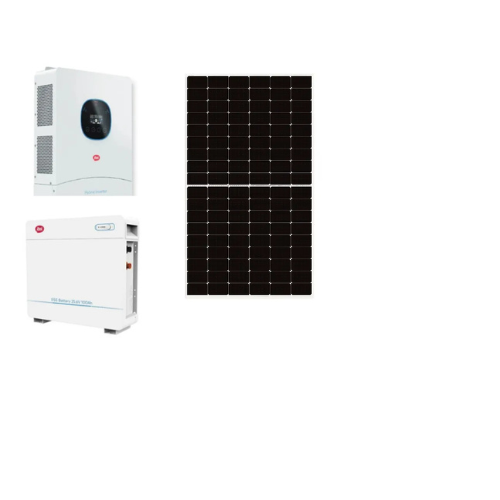

ITEL 4.0KW 24V Hybrid Inverter + 2.56KWh ITEL

Why this product

Built for the progress you want.

ITEL 4.0 kW-24V 6000Watts Maximum PV Power. Max PV input current 15A, 120A MAX Solar Charge Current, 500VDC Maximum PV Array Open Circuit, 85VDC - 450VDC MPPT Operating range, 28A Maximum AC charge current, (No Parallel compatibility), dual output, inbuilt wifi (IP 54 Indoor and outdoor use - 36months warranty) ITEL - 2.56kWh-24v (IPW-25100) 25.6v-100Ah Operating Range: 20v28.8vRS485/RS232/CANCommunication 6000 cycles @ 80% DOD, up to 4units in parallel- LED Display- Wall mount10years+ Design Life Jinko 590W Bifacial Solar Panel - SP590N-72HL4-BD (5 Pcs) SMBB Technology Better light trapping and current collection to improve module power output and reliability. PID Resistance Excellent Anti-PID performance guarantee via optimized mass-production process and materials control. Higher Power Output Module power increases 5-25% generally, bringing significantly lower LCOE and higher IRR. Hot 2.0 Technology The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID. Enhanced Mechanical Load Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal). Maximum Power (Pmax):590Wp Maximum Power Voltage (Vmp: 42.88V Maximum Power Current (Imp: 13.76A Open-circuit Voltage (Voc): 51.86V Short-circuit Current (Isc): 14.49A IDEAL USER Ideal for Lithium battery lovers with very minimal night energy needs and relatively high energy demand during the day across basic appliances. The goal of this user would be to maximize day time irradiation from the sun to power basic operational appliances for residential or commercial purposes like washing machine, pumping machine, freezer, fridge, lights, fan, TV while achieving close to Zero electricity bills during the day and minimal loads like a few light, fan and TV only during the night; the users in this category can improve on their battery bank storage over time if more appliances would need to be operational at night LOAD CHART Lightening: up to 6bulbs day and 3bulbs night (≤ 150watts in total) Television : ≤ 100watts in total Laptops : up to 200watts (3-4units for day time use) Fan : up to 4 fans day and 2 at night (≤ 200watts in total) Fridge : ≤ 200watts in total (day use only 9:00 – 5:00pm) Freezer : ≤ 200watts in total (day use only 9:00 – 5:00pm) Washing Machine: ≤ 350watts in total (day use only 10:00 – 4:00pm) Pumping Machine: ≤ 1.5hp(1,119watts); (day use only 12:00 – 3:00pm) NB: A. PV cables lengths are estimated for a single floor connection(I.e a bungalow), where extra floors exist, there would be an estimated 5meters addition in the length of PV Cables per string. B. AC Cable length are given based on close estimation where it is in deficit, customer would pay for the extra. C. Roof top installation has been assumed, any other location might require extra fabrication expense by the customer. D. Panel installation cost increases for each additional floor level. Applications : Residential(with high day time use and minimal night time use), Restaurants and eateries, offices, and Other commercial applications This is an inverter set and is not available for pickup. It will be delivered and installed
