Bosch Thermal Camera

Why this product

Bosch Thermal Camera: specifications and details

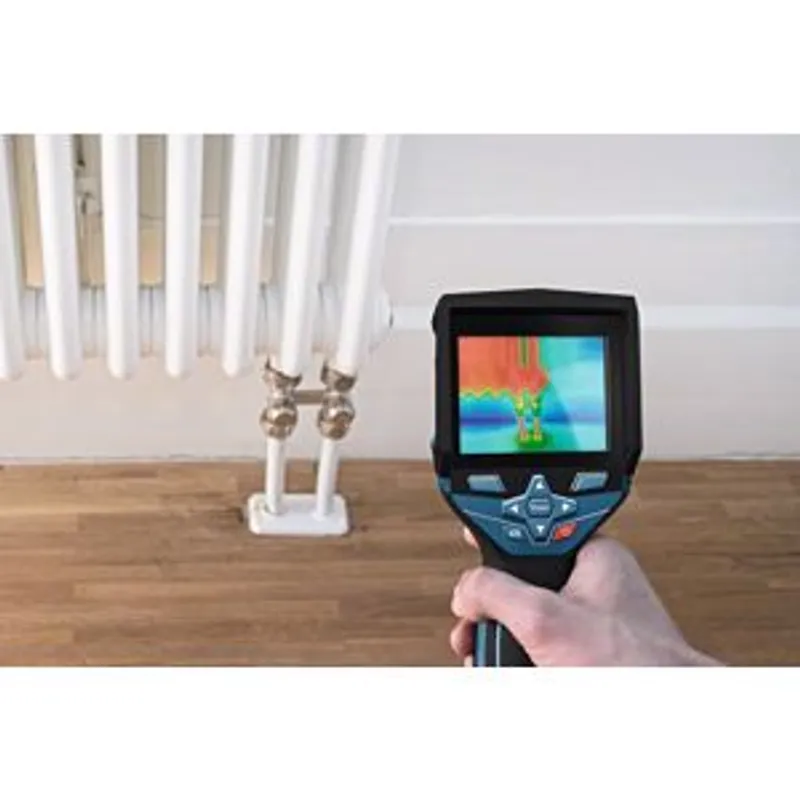

Battery voltage 12 Number of measuring points 19,200 Resolution 0.100 Operating temperature -10 – 45°C Operating temperature, up to 45 Operating temperature, from -10 Data transfer MicroUSB Wi-Fi Weight 0.540 Size of IR sensor 160x120 px Size of IR sensor, width 160 Size of IR sensor, height 120 Height 63 Length 233 Storage temperature -20 – 70°C Storage temperature, up to 70 Storage temperature, from -20 Measurement range -10 °C to +400 °C Measuring accuracy of IR ± 3.0 °C* (*plus use-dependent deviation) Focus distance, minimum 0.300 Specific Absorption Rate (SAR) <0.04 W/kg* (*limbs, average over 10g of tissue) Field of view (FOV) 53x43° Field of view (FOV), up to 43 Field of view (FOV), from 53 Memory type Internal memory Dust and splash protection IP 53 Power supply and runtime 4 x 1.5 V LR6 (AA) 1 x GBA 12V 1 x GBA 10.8V Thermal sensitivity (NETD) <50 mK Supported Android devices Smartphone with Android 6.0 or higher Supported iOS devices iPhone with iOS 11 or higher Length x width x height 233 x 95 x 63 cm Long version part 1 The thermal camera GTC 400 C Professional measures and visualises temperature differences in seconds and easily records the results. The Bosch Thermal App documents and forwards measured values fast. Intelligent picture-in-picture technology overlays detailed real and heat-sensing images (19,200 px), resulting in a high-quality image and clear localisation of temperature differences. With its dual power system, a 12 V LI-ION battery or standard alkaline batteries are suitable power supplies. Long version part 2 It is ideal for inspecting insulation, heating systems, heat flow, and for finding overheated parts. Long version part 3 The smart GTC 400 C Professional is perfect for supporting a variety of specialists in every project phase: From customer consultations by exhibiting clear images of the situation to preparatory tasks such as inspecting where lines are installed, through project documentation and even follow-up work. The measuring tool must not be used for human medical purposes. Size of display 3,5" Measuring application Thermal image Frame buffer (number of images) 500 File format of image .jpg
