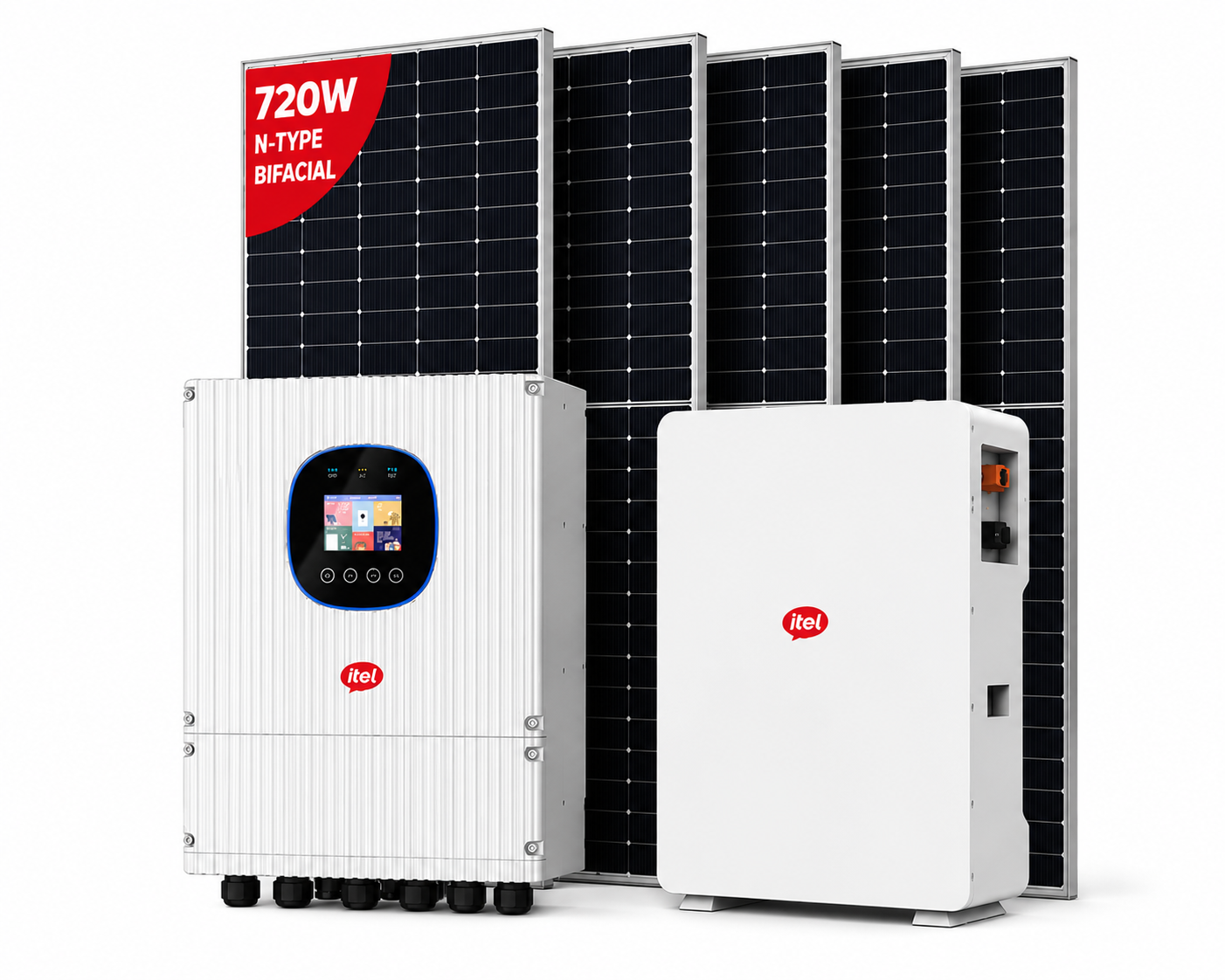

Itel 6.6kW 48V Hybrid Solar Inverter Kit

Why this product

Built for the progress you want.

Itel 6.6KW 48V 1phase 2MPPT Inverter - IHY-6K6L1C PV Input Power: 13200W MPPT Voltage Range: 60~425V Battery Rated Voltage: 48V Ingress Protection: IP66 Parallel Capability: Max.9 Nominal AC Input Voltage: 220/230/240V (L+N+PE) Max Solar Charging Current: 140A Net Weight: 15KG Dimension(D*W*H mm): 180*309*420 mm Noise: <55dB Itel Lithium Battery 16kWH 51.2V 314AH 48V - IPL- 51314Y Massive Capacity: With a rated capacity of 16.07kWh (51.2V/314Ah), this battery delivers sustained power for high-consumption appliances or full backup for extended outages. Long Lifecycle: Engineered for 6,000 charge cycles at 80% Depth of Discharge (DOD), ensuring over 10 years of daily use with minimal degradation. Expandable Architecture: Supports up to 15 units in parallel, allowing scalability from residential setups to commercial-scale systems. Smart Monitoring: Equipped with a built-in LED Display for real-time visibility of voltage, capacity, and status. Safe & Stable Chemistry: Utilizes LiFePO₄ (Lithium Iron Phosphate) technology for enhanced safety, thermal stability, and environmental friendliness. Stand-Alone Design: Standing floor model with compact, vertical form factor — perfect for space-conscious installations. JA 720W Bifacial Solar Panel N-Type - JAM66D46-720 x 4 Electrical data (STC) Maximum Power (Pmax): 720 W Module Efficiency: 23.2 % Cell technology: n-type (Deep Blue 4.0) Power tolerance: 0 ~ +3 % Open circuit voltage (Voc): 49.00 V Short circuit current (Isc): 18.59 A MPP voltage (Vmpp): 41.19 V MPP current (Impp): 17.48 A Maximum series fuse rating: 35 A NB: A. PV cables lengths are estimated for a single floor connection(I.e a bungalow), where extra floors exist, there would be an estimated 5meters addition in the length of PV Cables per string. B. AC Cable length are given based on close estimation where it is in deficit, customer would pay for the extra. C. Roof top installation has been assumed, any other location might require extra fabrication expense by the customer. D. Panel installation cost increases for each additional floor level. This is an inverter set and is not available for pickup. It will be delivered and installed
