ITEL 6.0 kW -48v + 16.0kWh ITEL

Why this product

ITEL 6.0 kW -48v + 16.0kWh ITEL: specifications and details

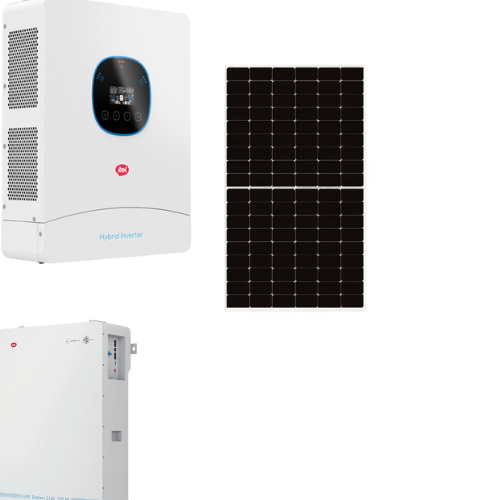

Power your home or business with this high-capacity ITEL 16.0kWh Lithium Battery & Hybrid Inverter Solar Power System, designed to deliver reliable electricity while reducing dependence on the grid. Featuring 12 high-efficiency Jinko 590W bifacial solar panels with a combined capacity of 7,080Wp (7.08kWp), this complete solar solution provides excellent energy generation, extended backup time, and efficient power management. The package includes a durable roof mounting kit and professional installation, making it a ready-to-deploy solution for residential and commercial applications. ITEL 6.0 kW -48v 8000Watts Maximum PV Power. Max PV input current 27A,Isc 32A, 100A MAX Solar Charge Current, 500VDC Maximum PV Array Open Circuit, 85VDC - 450VDC MPPT Operating range, 50A Maximum AC charge current, . WIFI-F dongle inclusive for remote monitoring. Parallel compatibility of up to 12units. (IP 54 Indoor use and outdoor use -36months warranty) 16.07kWh-48V-ITEL (5-Year Warranty) (IPL-51314Y) 51.2-314Ah 6000 cycles @ 80% DOD, up to 15units in parallelLED Display – Standing Model 10years+ Design Life Jinko 590W Bifacial Solar Panel - SP590N-72HL4-BD (12pcs) SMBB Technology Better light trapping and current collection to improve module power output and reliability. PID Resistance Excellent Anti-PID performance guarantee via optimized mass-production process and materials control. Higher Power Output Module power increases 5-25% generally, bringing significantly lower LCOE and higher IRR. Hot 2.0 Technology The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID. Enhanced Mechanical Load Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal). Maximum Power (Pmax):590Wp Maximum Power Voltage (Vmp: 42.88V Maximum Power Current (Imp: 13.76A Open-circuit Voltage (Voc): 51.86V Short-circuit Current (Isc): 14.49A NB: A. PV cables lengths are estimated for a single floor connection(I.e a bungalow), where extra floors exist, there would be an estimated 5meters addition in the length of PV Cables per string. B. AC Cable length are given based on close estimation where it is in deficit, customer would pay for the extra. C. Roof top installation has been assumed, any other location might require extra fabrication expense by the customer. D. Panel installation cost increases for each additional floor level. NOTE: This is an inverter set and is not available for pickup. It will be delivered and installed
